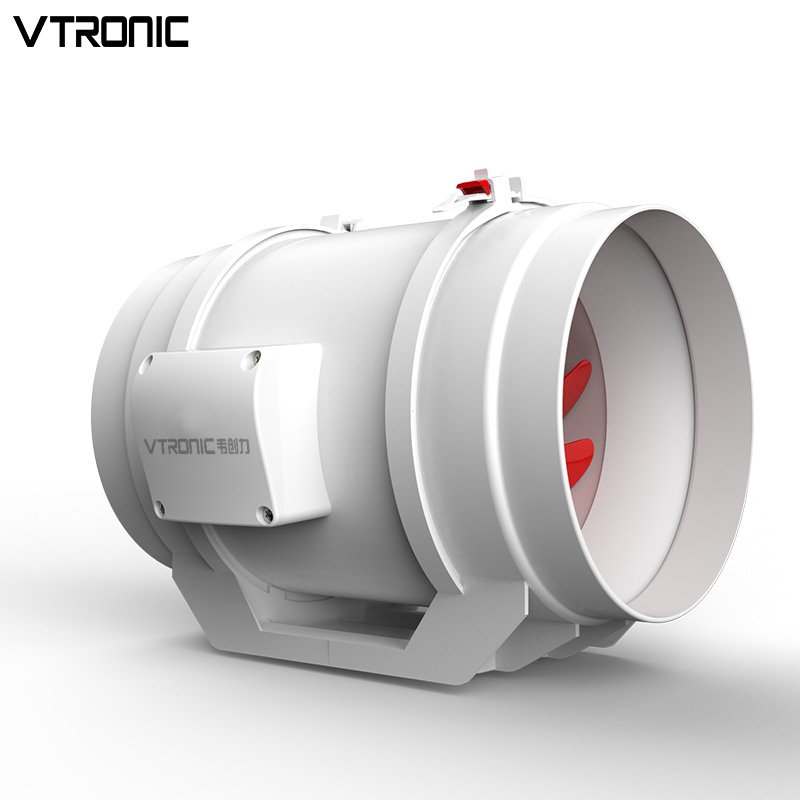

Exhaust Fan Vtronic 8' Mixed Flow Inline Duct Fan Pre-Wired Booster Fan, 850 CFM Speed Controllable Ventilation Fan for Grow Tents/Hydroponics/Bathroom/Heating Cooling Air Conditioner Booster
W200-01
Mixed Flow Inline Duct Fan. 1.On the basis of traditional fans, Vtronic duct fans have undergone deep technological innovation; 2.NMB bearing imported from Japan, pressurized hydrodynamic fan blade; 3.On the basis of maintaining the traditional large air volume, the noise is greatly reduced;
Details
[High Air Pressure & High Airflow] Thanks to unique pressurized fluid power blades design can support high airflow and air pressure at the same time
[More Than 50,000 Hrs Life] Adopting Japan NMB ball bearings power mixed-flow impellers well
[Easy to install] Mounting bracket designed rubber gasket ensure air tight and vibration-free connection
[Flame Resistant PP Material] High impact corrosion resistant & flameproof polypropylene casing for heavy duty applications
What You Get:1* 8'' mixed flow duct fan, 4*screws, 4*plastic wedges, 1*instruction manual and 12 months warranty
W0-01 8'' Mixed Flow Inline Ducting Fan
Specifications
- Speed Level: Low/High
- Voltage: 220-240 V
- Frequency: 60 Hz
- Power: 101/131 W
- Speed: 1650/2450 (RPM)
- Air Volume: 572-850 m³/h
- Air Pressure:167-370 Pa
- Noise: 55/63 dB
- Life: Over 50000 Hours
- Weight: 4.1 Kg
- Current (Amps): 0./0.59
- Electric Current Type: AC
- Blade Material: ABS Plastic
- Item Dimensions: 307*240* 228mm
- Diameter: 8 Inch
Features
Japan NMB bearings,working life more than 50,000 hours.
Fan base is designed according to the structure and safety requirements of the fan,simple and easy to install.
Optimal airflow air pressure,high efficiency,low energy consumption and low noise.
Unique buckle design,easy disassembly,tight seal,easy to install and maintain.
Double-diameter port,seals leak-proof, shock-proof protection,IP waterproof and flameproof.
Environment friendly material,corrosion resistant polycarbonate for heavy duty applications.
Applicable Scene
Can be designed with user friendly features such as time delay, temperature sense, humidity sensor or others.
Operating temperature range: -℃~60℃.
Perfect for hydroponic,greenhouse,warehouse,baseroom,kitchen,bathroom, apartments, office, public place, hotel, hospital, gym and etc.
